Michael J. Pazzani
We investigate learning a set of causally related concepts from examples. We show that human subjects make fewer errors and learn more rapidly when the set of concepts is logically consistent. We compare the results of these subjects to subjects learning equivalent concepts that share sets of relevant features, but are not logically consistent. We present a shared-task neural network model simulation of the psychological experimentation.
In the first experiment, subjects first induce the relevant background knowledge and then have the opportunity to use this knowledge in later learning. To more closely simulate the real world, we ran a second experiment wherein the subjects induce the relevant background knowledge at the same time as learning the concept that depends on this knowledge. In both experiments, subjects were divided into two groups. One group, the "feature consistency" group, learned a complex concept that shared relevant features with previously learned related concepts, but was not logically consistent with those concepts. Another group, the "logical consistency" group, learned a complex concept that was logically consistent with previously learned related concepts.
The first phase of the experiment was designed to minimize the effects of the subjects' domain-specific pre-existing theories by having every subject learn the same concept. In this first phase, subjects had to learn when there is a severe risk of forest fires in the fall given data on rain in the spring and summer. An example of these data is shown in Figure 1. Subjects were given data that indicated that there is a severe risk of forest fires in the fall only when there is both a wet spring and a dry summer. This rule is consistent with the knowledge of most people who live in Southern California. In the remaining phases, when we measure the learning rate and number of errors made by subjects, novel stimuli are used as features to insure that the knowledge was acquired during the experiment.
Figure 1. An example of the abstract feature stimuli used for the first concept .

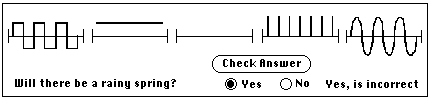

Figure 2. An example of the stimuli used for the second, third and fourth concepts.
In the fourth, and final, concept learning problem, subjects had to learn to predict from the instrument readings when there would be a severe risk of fire in the fall. Concepts 1-3 served as background knowledge for this concept. Subjects in the logical consistency group were given data that indicated there would be a severe risk of fire when Instrument-A displayed a graph and when either Instrument-B or Instrument-C (or both) displayed a graph, i.e., A and (B or C). This concept is logically consistent with the first three concepts that were learned. Subjects in the feature consistency group were given data that indicated there would be a severe risk of fire when Instrument-C displayed a graph and when either Instrument-B or Instrument-A (or both) displayed a graph, i.e. C and (B or A). Although not consistent with the concepts that were learned, this concept shares relevant features with the logical consistency concept.
Subjects. The subjects were 18 male and female undergraduates attending the University of California, Irvine who participated in this experiment to receive extra credit in an introductory psychology course.
Stimuli. The stimuli consisted of data that were displayed on a computer monitor. In the first concept, since there are two two-valued features, 4 distinct stimuli were constructed. In the remaining three concepts, there were 32 distinct stimuli since there are five two-valued features. The stimuli were presented in a random order for each subject.
Procedures. Each subject was shown data on the computer from a single year and asked to make a prediction (e.g., whether there would be a severe risk of fire in the fall) by clicking on a circle next to the word Yes or a circle next to the word No (i.e., using a mouse to move a pointer to the circle and pressing a button on the mouse). Next, the subject clicked on a box labeled Check Answer. While still displaying the data, the computer indicated to the subject whether his answer was the correct answer. If the subject's answer was correct, the subject could click on a box labeled Continue and data from another year was shown. Otherwise, he selected a different answer and clicked on Check Answer again. This process was repeated until the subjects performed at a level that ensured they had learned an accurate approximation to the concept (making no more than one error in any sequence of 24 consecutive trials). The subjects were allowed as much time as they wanted to make their prediction and to view the data after the correct answer was shown. This process of learning a concept to criteria was repeated for each of the four concepts learned. We recorded the number of the last trial on which the subject made an error, the total number of errors made by the subject for each concept, and the number of made on each block of 16 trials. If the subject did not obtain the correct answer after 96 trials, we recorded that the last error was made on trial 96.
Results. Subjects in the logical consistency group required an average of 27.6 trials to learn the fourth concept, while subjects in the feature consistency group required an average of 50.4 trials t(16) = 1.91, p < .05. Subjects in the logical consistency group made an average of 6.8 errors, while subjects in the feature consistency group made an average of 14.0 errors t(16) = 2.135, p < .05.

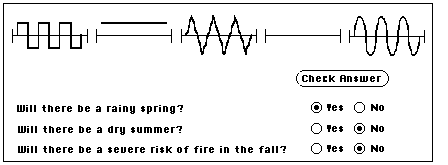

Figure 3. An example of the stimuli used in the second phase of Experiment 2.
Figure 4 The mean percentage of errors made by subjects in the logical consistency and feature consistency groups as a function of the trial in Experiment 2.
Second, learning the relevance of individual features cannot account for these findings. Wisniewski and Medin (1994) use the term selection models to refer to learning models that use prior knowledge to determine which features are relevant. Lien and Cheng (1989) present one such model. Selection models would not be able to explain the results since both the logical consistency and feature consistency groups learn concepts with the same relevant features.
Third, although the subjects in the logical consistency group learn faster and make fewer errors than subjects in the feature consistency group, they learner slower and make more errors than would be predicted by existing computational models of the influence of prior knowledge such as Explanation-based learning (EBL) (Mitchell et al. 1986). EBL is a machine learning method that derives concepts from background knowledge. At first, it might seem that EBL would serve as an ideal model of the use of prior knowledge in learning. Its inputs correspond exactly to those items learned in Phases 1-3 of the first experiment, and its output correspond exactly to the concept to be learned in Phase 4. However, there are several problems with EBL as a model of human learning. First, EBL algorithms would learn more quickly than the logical consistency subjects. Since the fourth concept can be deductively derived from the preceding three, EBL would make no errors on this data. Second, EBL cannot function unless the background knowledge is complete. For example, EBL could not acquire the concepts in Phases 2 and 3 since these are just associations between stimuli and weather predictions.
The network diagrammed on the left side of Figure 5 shows a typical way of using networks to learn sub-task concepts with the network applied to Experiment 1. (Please note that in order to make the diagrams more comprehensible, only some of the connections between nodes are drawn. In an actual network, all the nodes of a hidden layer would be connected to all of its input and output nodes.) The network first learns the section enclosed in the solid line. The two inputs are analogous to the abstract features shown our subjects in the first phase of the experiment. The output is the network's guess at whether or not there will be a severe risk of fire in the fall. Second, the network is trained on the section enclosed in the dashed line. This represents learning the Wet Spring concept. The five inputs (A-E) on the left represent the five instrument displays shown to the human subjects. The output is the network's prediction at whether there will be a wet spring. Third, the Dry Summer concept is trained on the network section enclosed in the dotted line. The same five inputs are used as were used to learn the previous concept. The output is the network's guess at whether there will be a dry summer. The wet spring and dry summer concepts are the sub-tasks the network learns. The final Fire in the Fall concept is represented by training and testing on the entire network. The network uses the five inputs to decide if there will be a severe risk of fire in the fall.

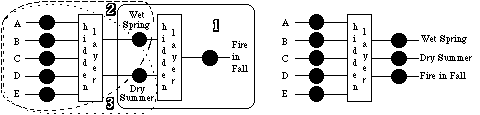

Figure 5. Neural network diagrams. The network on the left is a sub-task learning model. The network on the right is a shared-task learning model.
Caruana (1993) has done work on shared-task learning using networks with one hidden layer. The network on the right of Figure 5 is a representation of such a network. A major advantage of this model is that the hidden layer can create new features which can be shared by all of the output units. To model the first experiment, the network first uses the five inputs and only the Wet Spring output unit is trained, i.e., receives feedback on its performance. Second, the same five inputs are used, but only the Dry Summer output unit is trained. Third, the Fire in the Fall output unit is trained and tested using the five inputs.
We performed experiments with shared-task neural nets to see if they could model the results from our psychological experiments since it appeared that this method could learn the combinations of features in addition to feature relevancy. These networks might also be able to combine features and store the combination in the network just as it stores learned knowledge. In both experiments, the first phase used 2 abstract features as stimuli while the later phases used 5 instrument displays. Since the network cannot learn concepts with different forms of inputs, it cannot be trained on the first phase. However, the network can be used to learn the other phases of the experiments. To model the sequential experiment (Experiment 1), the network first uses the 5 inputs and only the Wet Spring output unit is trained, i.e., receives feedback on its performance. Second, the same 5 inputs are used, but only the Dry Summer output unit is trained. Third, the Fire in the Fall output unit is trained and tested using the 5 inputs. Modeling the simultaneous experiment (Experiment 2)is done by training all 3 of the output nodes at the same time, but only using the Fire in the Fall unit for testing.
The logical form of the data was the same as used in the psychological experiments. The first output unit had a value of one when one random feature, say A, had a value of 1. The second output unit had a value of 1 when either (or both) of two other randomly selected features, say B and C, had values of 1. To model the logical consistency group, the third output unit had a value of 1 when feature A had a value of 1 and either feature B or feature C (or both) had a value of 1, i.e. A and (B or C). The network used was a feed-forward system with one layer of 20 hidden units. The generalized delta rule was used for training and the logistic function was used for activation. At testing, a network output value greater than 0.5 was treated as a 1 and a value below 0.5 was treated as a 0 to model the forced guessing that was applied to the human subjects. Momentum was set at 0.90 and the learning rate was set at 0.25.
To model Experiment 1, we trained the network to sequentially learn each of the 3 concepts: wet spring, dry summer, and fire in the fall. We first trained the network to learn when an example was a positive example of the wet spring concept, i.e. when the first output unit would have a value of 1 as a function of the 5 features. After each epoch through the training data, the network was tested to see if it could correctly predict the value of the first output unit on at least 31 of the 32 examples. If it could, the network was then trained on learning when the second output unit (dry summer) was true as a function of the 5 features. If it could not reliably predict the first feature, it was trained on another epoch through the data. After it had learned to reliably predict the second output unit, it was trained to predict the third output unit - the fire in the fall concept. Data was recorded on how many epochs the network took to learn the final concept. The process of learning each concept sequentially was repeated 50 times.
The network required an average of 5.96 epochs, or 190.72 trials, to learn the logical consistency set, while it took significantly longer, 8.50 epochs or 272.00 trials, to learn the feature consistency set, t(98) = 6.06, p < .05. Similar to the human subjects, this network sequentially learned the set of concepts more easily when it was logically consistent than when the concepts merely share features.
To model Experiment 2, we trained the network to simultaneously learn all three concepts. The network was trained on all 3 of the concepts, but was tested only on the third concept. After each epoch through the training data, the network was tested to see if it could correctly predict the value of the third feature on at least 31 of the 32 examples. If it could, then training stopped; otherwise, it was trained for another epoch. Data was kept on how many errors the network made on each epoch and on which epoch the network learned the final concept. The process of learning the concepts was repeated 50 times.
The neural net required an average of 7.12 epochs, or 227.84 trials, to learn the logical consistency set, while it took significantly longer, 9.66 epochs or 309.12 trials, to learn the feature consistency set, t(98) = 5.039, p < .05. Similar to the human subjects, this network simultaneously learned the set of concepts more easily when it was logically consistent than when the concepts merely share features. Figure 6 graphs the percentage of errors made on the two sets as a function of the number of epochs. It shows that after the second epoch, the graph is similar to Figure 4. On the logically consistent condition, the network becomes accurate with fewer training epochs.
Figure 6 The mean percentage of errors made by the neural network in the logical consistency and feature consistency groups as a function of the epoch.
We have focused on how prior knowledge facilitates learning. We should also point out that incorrect prior knowledge may also hinder learning by providing misconceptions (Chi, Slotta & de Leeuw, 1994). It is only when prior knowledge is compatible with the new knowledge to be acquired that we anticipate a positive effect.
Classical concepts that consistent of sets of necessary and sufficient features have several flaws. Few concepts people encounter have such rigorous logical definitions (Rosch, 1978). More recently, it has become apparent that concepts do not exist and are not learned in isolation. Here, we have presented quantitative results on how induced background knowledge influence the rate of learning and the number of errors made during learning. While we have found that having relevant, correct background knowledge facilitates learning, it does not eliminate the need for learning. That is, unlike previous learning models, when subjects have learned rules corresponding to "A -> WetSpring," "B or C -> DrySummmer" and "WetSpring and DrySummmer -> FireInFall" they do not automatically know that "A and (B or C) -> FireInFall." We believe that one flaw in previous learning models that use prior knowledge is that the equate an explanation with a logical proof, and use rules that have necessary and sufficient preconditions. Such rules may be as rare in the real world and as cognitively implausible as concepts that consistent of necessary and sufficient definitions.
Chi, M., Slotta, J. & de Leeuw, N. (1994). From theories to processes: A theory of conceptual changes for learning science concepts. Learning and Instruction, 4, 27-43.
Lien, Y., & Cheng, P. (1989). A framework for psychological induction: Integrating the power law and covariation views. The Eleventh Annual Conference of the Cognitive Science Society (pp. 729-733). Ann Arbor, MI: Lawrence Erlbaum Associates, Inc.
Mitchell, T., Keller, R., & Kedar-Cabelli, S. (1986). Explanation-based learning: A unifying view. Machine Learning, Vol. 1(1).
Murphy, G., & Medin, D. (1985). The role of theories in conceptual coherence. Psychological Review, 92, 3.
Nakamura, G. (1985). Knowledge-based classification of ill-defined categories. Memory & Cognition. 13, 377-84.
Pazzani, M. (1990) Creating a memory of causal relationships: An integration of empirical and explanation-based learning methods. Hillsdale, NJ: Lawrence Erlbaum Associates.
Pazzani, M. (1991). The influence of prior knowledge on concept acquisition: Experimental and computational results. Journal of Experimental Psychology: Learning, Memory & Cognition, 17, 3, 416-32.
Rosch E. (1978). Principles of categorization. In Cognition and categorization (Ed.), Rosch E. & Lloyd B.. Hillsdale, NJ.: Lawrence Erlbaum Associates.
Rumelhart, D., Hinton, G., & Williams, R. (1986). Learning internal representations by backpropagating errors. In: Rumelhart, D., McClelland, J. (eds.), Parallel Distributed Processing, Cambridge, MA: MIT Press.
Towell, G. Shavlik, J. & Noordewier, M. (1990). Refinement of approximate domain theories by knowledge-based neural networks. Proceedings of the Eighth National Conference on Artificial Intelligence (pp. 861-66). Cambridge, MA: MIT Press.
Waldmann, M. & Holyoak, K. (1990). Can causal induction be reduced to associative learning? Proceedings of the Twelfth Annual Conference of the Cognitive Science Society Cambridge, MA: Lawrence Erlbaum.
Wattenmaker, W., Dewey, G., Murphy, T., & Medin, D. (1986). Linear separability and concept learning: Context, relational properties and concept naturalness. Cognitive Psychology, 18, 158-194.
Wisniewski, E. & Medin, D. (1994). On the interaction of data and theory in concept learning. Cognitive Science, 18, 221-282.
