Clang C/C++ Download and Installation

Download/Install the Clang Compilers

Clang is the C/C++ complier that we will use in ICS-46. The version I installed (on 9/16/2016) is Apple version LLVM 6.0 (clang-600.0.57) (based on LLVM 3.5svn).

After following the instruction here, you will download a version of CLion, an Integrated Development Environment (IDE) for using these compilers (or you can choose to use these compilers via a command-line). In the process, you will also install Xcode's command line developer tools.

You may want to print these instructions before proceeding, so that you can refer to them while downloading and installing the Clang compilers. Or, just keep this document in your browser. You should read each step completely, before performing the action that it describes.

Clang Compilers

Downloading and Installing

1. Open a Terminal window. Enter the command clang --version to see if the Clang compilers are already installed.

2. If you want to install or update the Clang compilers, enter the command command xcode-select --install The following pop-up windout should appear on your screen (in this example I have placed it withing the Terminal window).



3. Click the Install button.

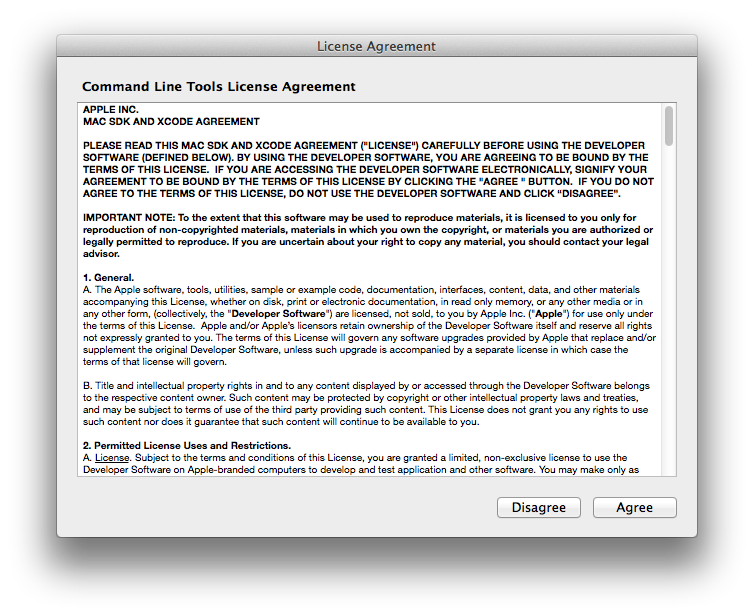

   The following License Agreement pop-up window should appear on your screen.



4. Click the Agree button.

   The following progress bar pop-up window should appear on your screen.



   When it is finished (in about a minute, as it says) The following pop-up window should appear on your screen.



5. Click Done.

6. You can double-check the installation in the Terminal by entering the command clang --version to see if the (udpated) Clang compilers are now installed. Here is what this command generated when I entered it.



If this worked as it should, you are now ready to install the CLion IDE
